Estink Solar Circuit Board - 3.2V/3.7V Remote Control Solar Lamp Controller with Human Body Motion Sensor, 3-Speed Switch for Outdoor Solar Landscape Lights & Pathway Lighting | Perfect for Garden, Yard, Patio, and Driveway Illumination
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
57802647
Description

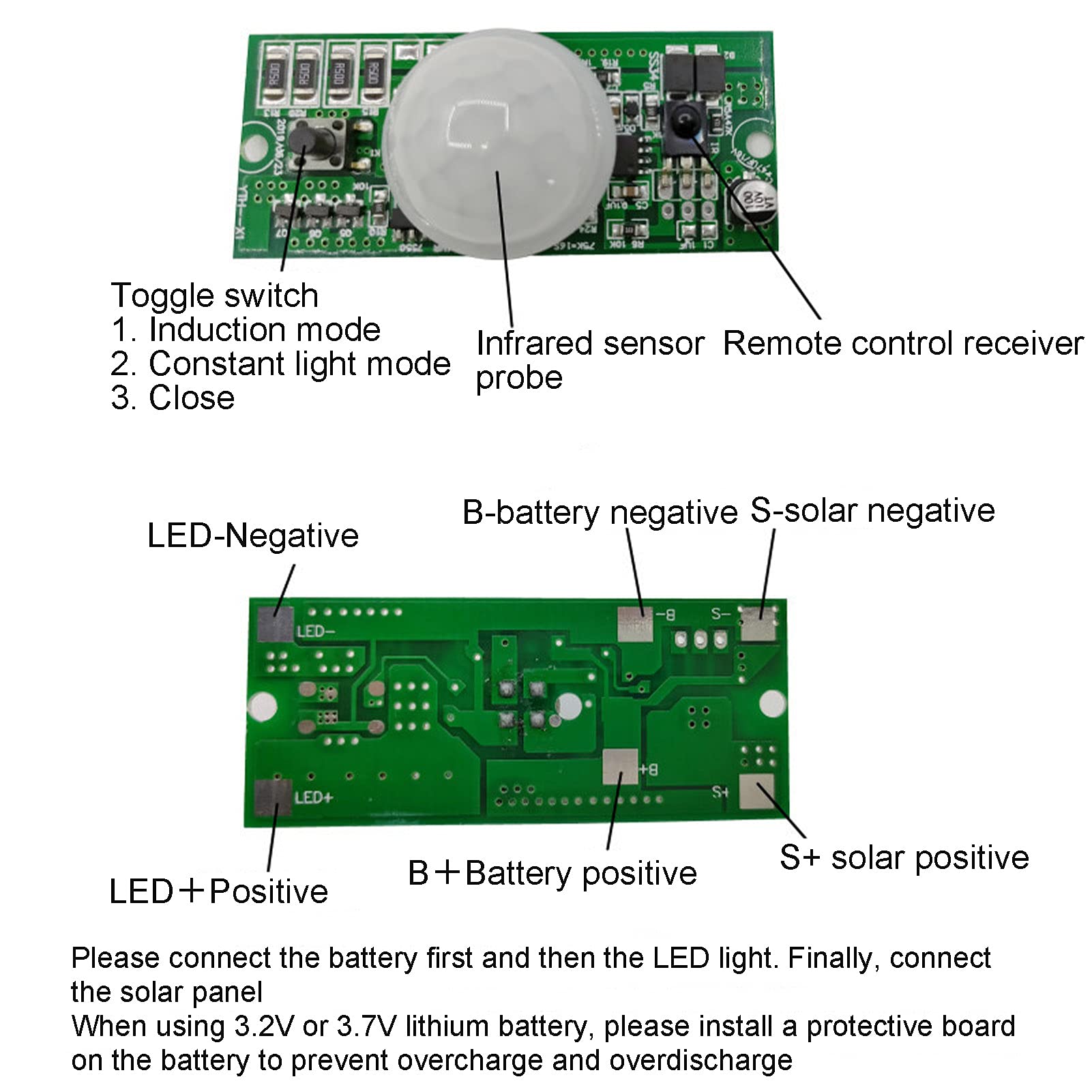

Estink Solar Circuit Board, Remote Control Solar Lamp Circuit Board Human Body Induction 3.2V/3.7V Street Lamp Controller Module How to Use: 1. Please connect the battery first and then the LED light. Finally, connect the solar panel 2. When using 3.2V or 3.7V lithium battery, please install a protective board on the battery to prevent overcharge and overdischarge Specification: Item Type: Solar Circuit Board Material: Glass fiber+ABS Rated Battery Voltage: 3.2V lithium iron battery / 3.7V ternary lithium battery (the battery needs to have its own board) Remote Control Power Supply: 2 x AAA batteries (Battery Not Included) Solar Panel Input Power: 5V-6V<20W Lamp Output Power: 3V<90W Induction Mode: Induction high light + low light and long light. Induction Time: About 10 seconds Sensing Distance: 5-10 m / 16.4-32.8 ft Switch: 3 gears (induction mode/constant light mode/light off) Remote Control Function: Dimming brightness / dimming light mode The Induction Mode: Human body induction highlights for about 10 seconds, turns to low brightness and long brightness Weight: Approx. 36g / 1.3oz Circuit Board Size: Approx. 26.8x63.8mm / 1.1x2.5in Remote Control Size: Approx. 40x105mm / 1.6x4.1in Package List: 1 x Circuit Board 1 x Infrared Sensing Hood 1 x Remote Control (Battery Not Included) 1 x Manual Note: This control panel does not have overcharge and overdischarge . The battery needs to have its own board to connect the battery. Compatible with 3.2V lithium iron battery and 3.7V lithium battery. It can be used for solar integrated street lamp modification or maintenance.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Features
5-10 m Sensing Distance With human body induction, the induction distance is about 5‑10 meters, can provide you with greater convenience.
Quality Glass fiber+ABS The body induction solar circuit board is made of high‑quality glass fiber and ABS materials, , not easy to damage, good performance, and long service life.
Simple to Operate The brightness of the solar circuit board can be adjusted as required, and the timing can be remotely controlled. The is very easy, and can save time and power.
Easy to Carry The solar circuit board is compact design, easy to carry and store, can provide stable performance. with remote control function, can dimming brightness and light mode.
High Performance The product is manufactured under strict quality control and standard requirements, and has a high safety factor, so it can be used with confidence.
