2 Pin Waterproof Connector - Industrial Metal Aviation Cable Connector for Automotive, Marine, Lighting - Weatherproof Electrical Wire Connectors for Indoor/Outdoor Use in Harsh Environments

Features

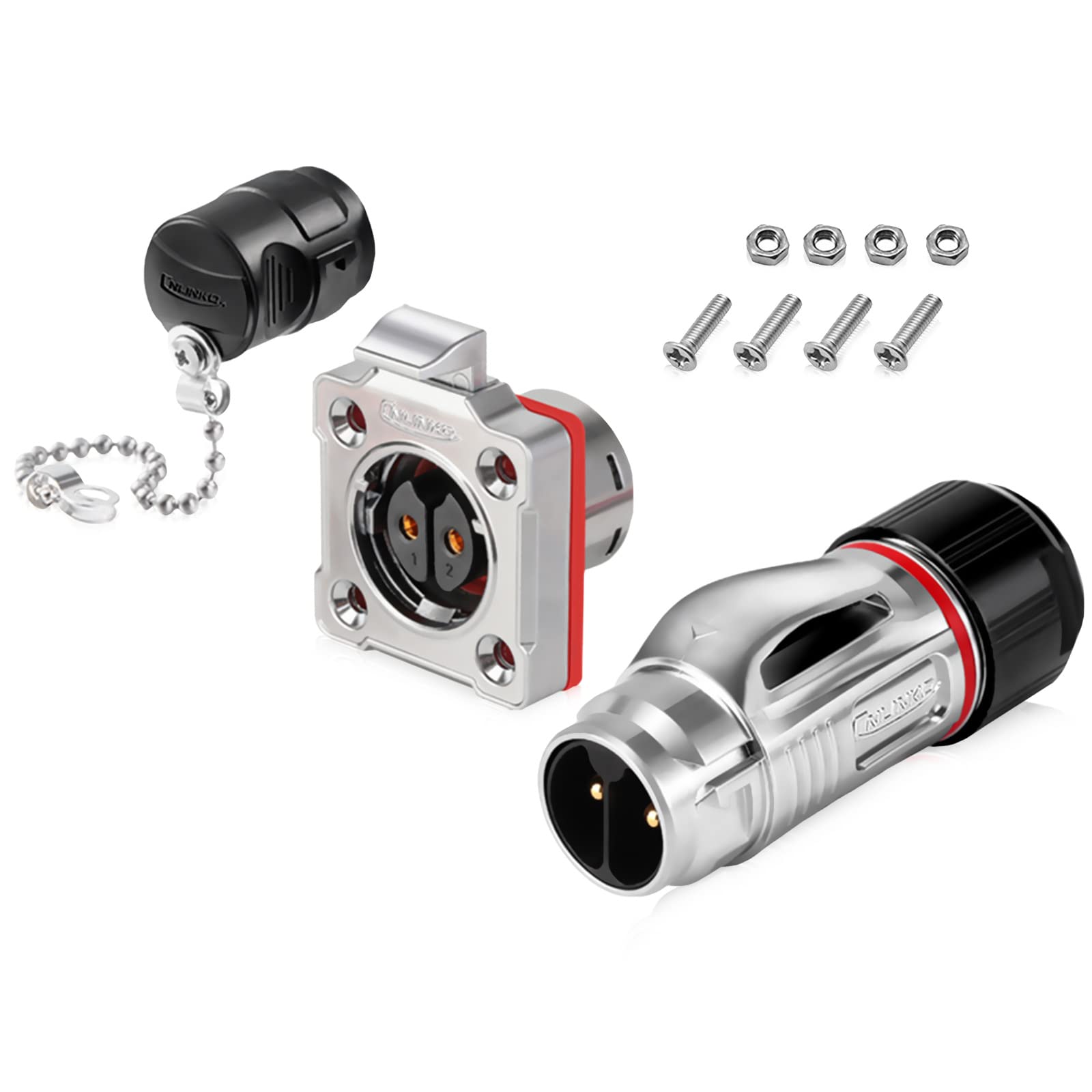

2 Pin Connector Specifications The working voltage of the power connector can reach 300VAC, and the rated current is 20A. General wire diameter 9.0mm-12.0mm. Cable specification 4.0mm²/12 AWG. Contact resistance <1.0mΩ. Mounting dimensions M20. Waterproof Protection level IP67. Package list 1 male plug + 1 female socket.

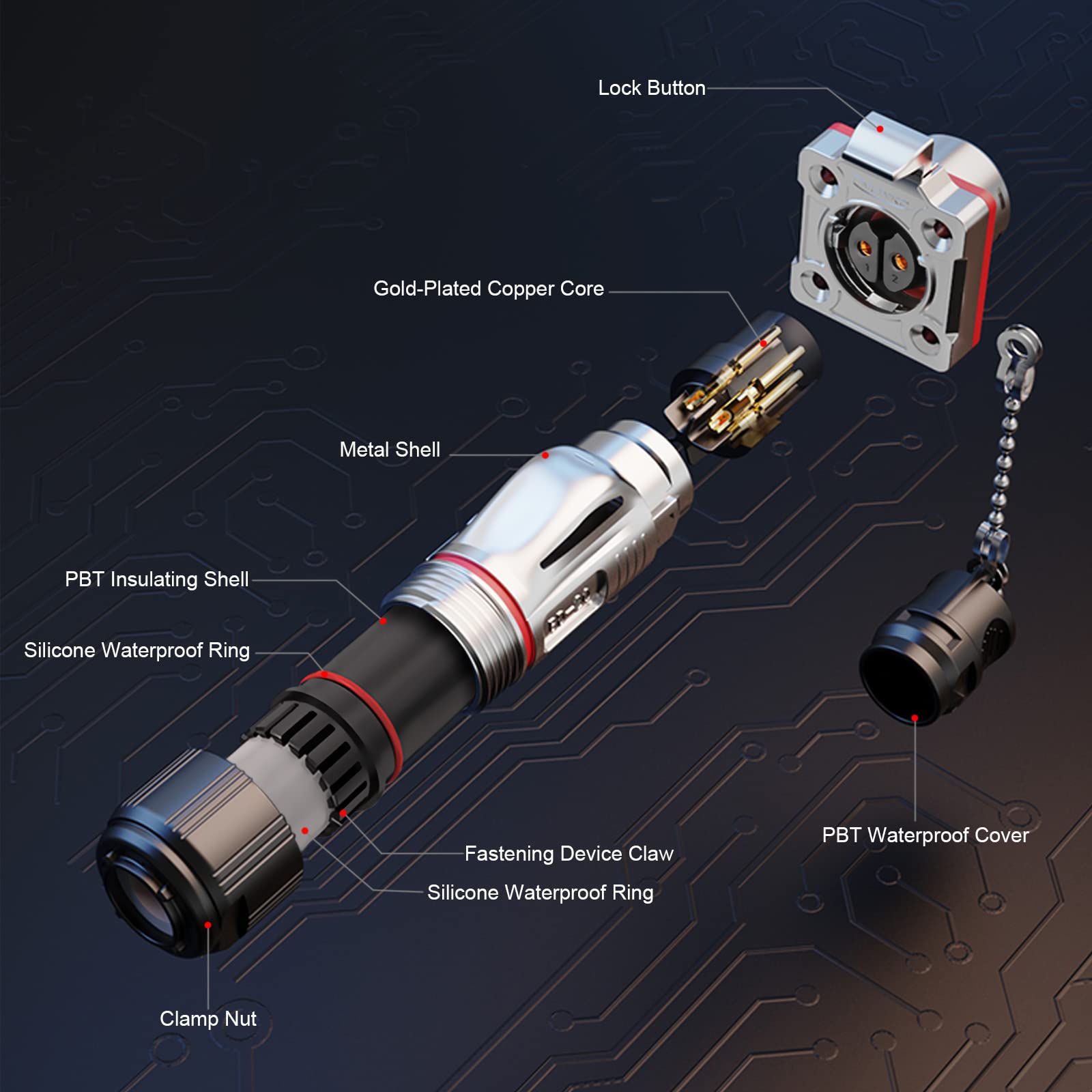

High-Quality Material Our 2 pin waterproof metal connector is made of a high-quality zinc alloy metal shell, which has strong impact resistance. The contact piece is made of copper alloy, the surface is gold-plated, and the conduction speed is fast and stable. Integrated structure, strong and durable.

Easy to Install Electrical Connector Cable Connection Type Soldering. Pass the stripped cable through the clamping nut of the waterproof connector, the PBT insulating shell. Using soldering equipment, solder the wires to the gold-plated contacts of the plug, and screw the parts down. Solder the socket in the same way, and then install the socket on the panel with screws. Connect the plug and socket to use normally. Note Prohibited to charged inserted. The wiring welding temperature requirement is -40℃ to 85℃, and operation time each point does not exceed 3 seconds.

Perfect Waterproof Wire Connectors The waterproof connector can be up to a waterproof IP67 protection level when connected. Even in harsh outdoor weather conditions, it can still be in a good state of waterproof performance. High quality ensures that your industrial equipment works well without being affected.

Wide Application Power Connector Aviation connector is ideal for any equipment for watertight, indoor/outdoor applications, such as outdoor electric tools or appliances, medical devices, audio/video, robots, RV solar, communications, marine or automatic equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, etc.
