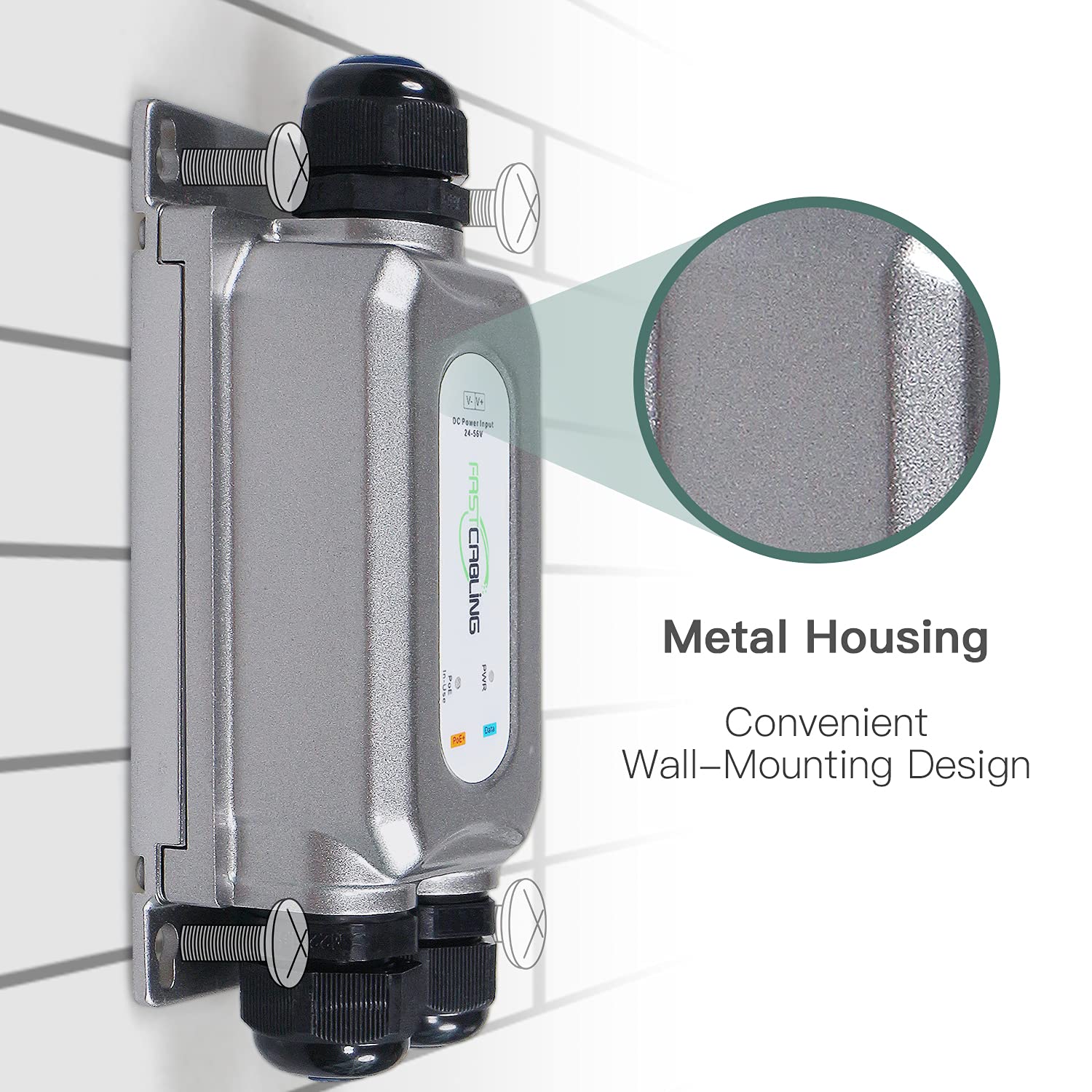

30W Outdoor PoE Injector for Mesh Network - 24V-56V Input, Solar Power Compatible, Industrial Grade, Wide Temperature Range -40°F to 75°F, IEEE 802.3at/bt Compliant - Perfect for Outdoor Security Cameras, Wireless Access Points, and Solar-Powered IoT Devices

The PoE IP devices only will draw whatever power it needs. You can power an 8W IP camera by using the 30W PoE injector but not the other way around. Some infrared PTZ cameras need 30W PoE+ power. This 30W PoE+ injector will ensure you have sufficient power for your device. The industrial hardened PoE injector accepts wide range of voltage input (between DC24V-DC56V) and regulates it to standard POE output. It provides flexible power options including the 24V solar panel power system. Now the solar panel power system can be 328ft far from the edge devices by taking advantage of POE. The surge could be absorbed by the cat5e/cat6 cable and transmitted to both ends. Grounding the PoE injector as well as the edge device can introduce the surge to the ground and protect your system from damage caused by the surge impact. Technical Specifications PoE Standard IEEE 802.3at Power over Ethernet Plus / End-span PSE Backward compatible with IEEE 802.3af Power over Ethernet PoE Power Output 54V DC, max. 30 watts PoE Power Supply Type End-span Power Pin Assignment 1/2 (+), 3/6 (-) Interface Input Port: 1x 10/100/1000BASE-T “Data” in RJ45 port Output Port: 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE+ “Data + DC” out RJ45 port Input Power Terminal Block: 1 x 2-pin terminal block – Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) Data Rate 10/100/1000Mbps LED Indicator PWR (Green) , PoE-in-use x 1 (Green) Input Voltage 24~56V DC Surge Protection Differential mode ±4 kv, Common mode ±6 kv Operating Temperature -40 ~ 75 degrees C 90W 802.3bt PoE Midspan Injector 60W Outdoor Industrial Waterproof PoE Injector 30W Outdoor Industrial Waterproof PoE Injector 95W PoE Splitter Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 5.0 out of 5 stars 5 5.0 out of 5 stars 1 5.0 out of 5 stars 2 — Price $128.85$128.85 $138.84$138.84 $118.64$118.64 — no data PoE Standard 802.3af/at/bt 802.3af/at/bt 802.3af/at/bt 802.3af/at/bt PoE Budget 95W 60W 30W 72W Network Speed 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps Surge Protection Differential mode ±4 kv, Common mode ±6 kv Differential mode ±4 kv, Common mode ±6 kv Differential mode ±4 kv, Common mode ±6 kv Differential mode ±4 kv, Common mode ±6 kv Wall Mount ✓ ✓ ✓ no data Waterproof Rating no data IP67 IP67 no data Operating Temperature -0°C ~ 40 °C -40°C ~ 75 °C -40°C ~ 75 °C -40°C ~ 75 °C
